EOT Crane Manufacturing
EOT Cranes are Electric Overhead Traveling Cranes that are used to lift heavy materials at factories and industrial buildings. They are designed to offer precision in movement and have a high load capacity. They can smoothly operate and perform reliable operations at various applications. They are also designed to assist with safe operations while handling materials. Each of these cranes have a unique and outstanding configuration with a cross beam or single girder that has been inverted. The gantry beam suspends against the shed structure, while the LT end carriage dangles from it, seamlessly connected below the end carriage. Our underslung EOT crane ranges up to 12.5 tons with an impressive 25-meter span. All three meticulously crafted modular design adheres to rigorous international standards – FEM, ISO, and IS – offering precision and excellence. A circular variant in the same category further amplifies your choices. Experience EOT Cranes like never before, with revolutionary precision in overhead lifting across all axes. We customize all our offerings, from Crane Kits to Double Girder, Underslung, and Single Girder EOT Cranes.

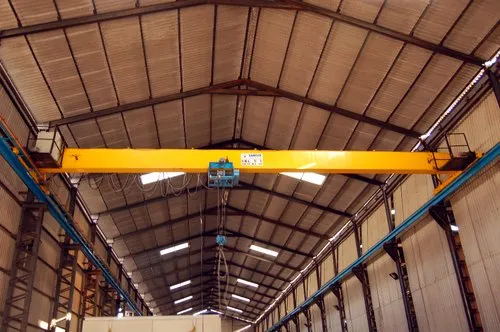

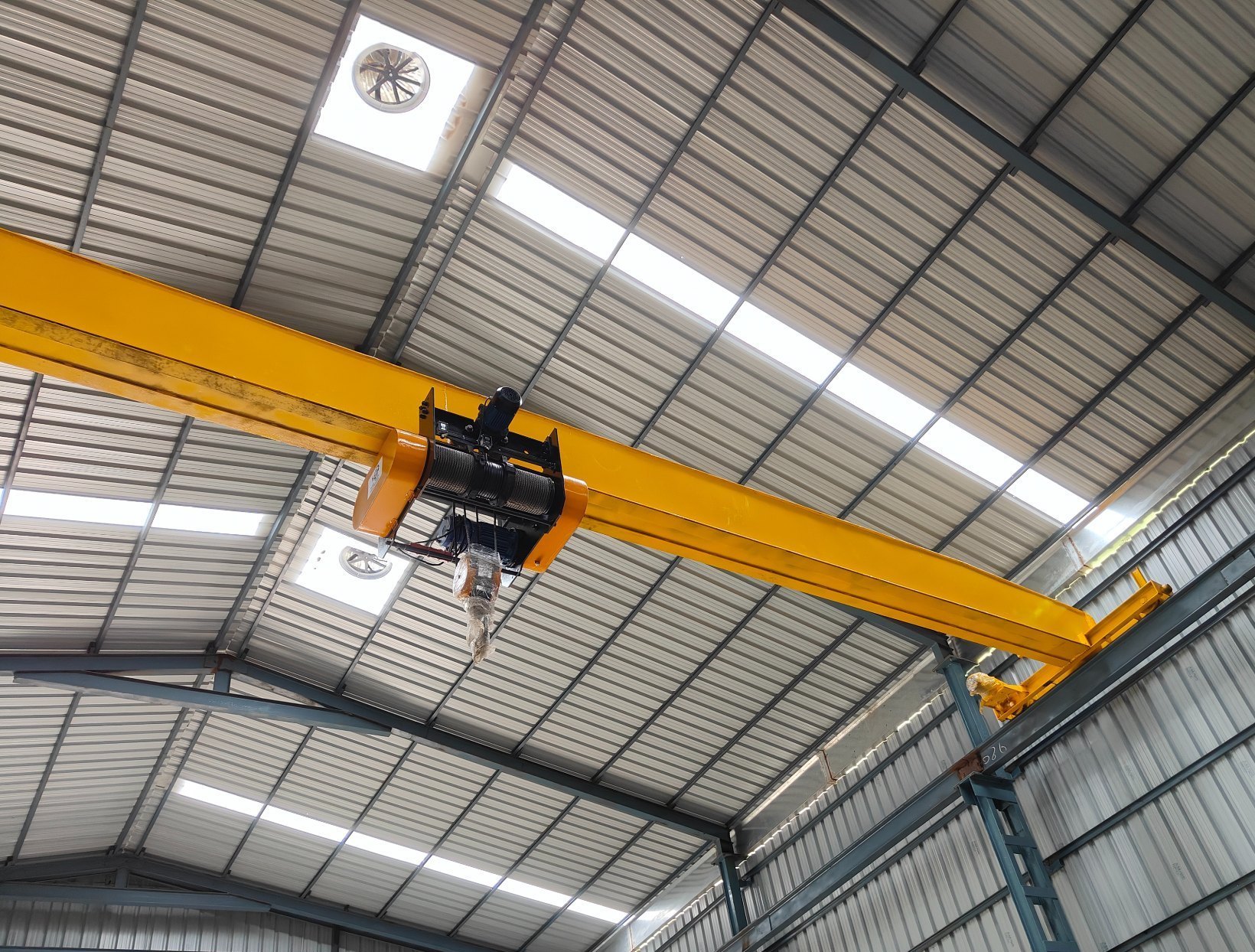

Single Girder EOT Crane
Single Girder EOT Cranes are reliable, budget-friendly, and make a great solution for materials handling in medium-duty applications. It consists of a single bridge girder supported on end trucks, with a hoist and trolley that operates on the bottom flange. Our Single Girder EOT Cranes are ideal for workshops, warehouses, fabrication units, and small to medium-scale industries where lifting requirements are up to 25 tons. These cranes ensure smooth operation, reduced dead weight, low maintenance cost, and easy installation.
Our selection of bespoke single girder EOT cranes is ideal for lifting requirements as light as 250kg or 15T and up to 30 meters span. Additionally, we design and manufacture our cranes with adequate safety guidelines in mind, and our products can be designed to match the requirements of both new and existing buildings. To learn about our service or to schedule an appointment with our consultants, contact us today!
TECHNICAL SPECIFICATION
| # | Specification | Details |
|---|---|---|
| 1 | Capacity (t) | (0.5 - 20) |
| 2 | Span (m) | (3 - 50) |
| 3 | Height of Lift (m) | (3 - 100) |
| 4 | Speed (m/min) | Hoisting: 0.5–20 | Cross Travel: 5–40 | Long Travel: 5–40 |
| 5 | Power Supply | 3 Phase, 415V, 50Hz |
| 6 | Duty Class | IS 3177 / IS 807 (Class II, III, IV) |
Double Girder EOT Crane
ElectroMech’s Double Girder EOT Cranes are rugged in Construction and are deployed for a wide range of hoisting capacities and applications. Our cranes combine high speed and high hooks for steel, metal and various other sectors which need heavy service.With SWLs ranging from 3.2 to more than 500t, our cranes incorporate either standard ABUS crabs for up to 100t SWL or fully customised open winch type crabs. ElectroMech’s fully customised double girder cranes are suitable for varied duty cycles for a large range of spans, heights of lift and customizable speeds. They are provided with multiple hoisting trolleys running on the same bridge or auxiliary hoisting mechanisms on the main trolley. Precise control of all motions is achieved through variable frequency drives.
Our Double Girder EOT Cranes can handle capacities up to 200 tons with spans up to 50 meters. Built with precision engineering and in compliance with IS/FEM standards, these cranes ensure maximum safety, reliability, and smooth performance under challenging working conditions.
TECHNICAL SPECIFICATION
| # | Specification | Details |
|---|---|---|
| 1 | Capacity (t) | (3.2 - 500) |
| 2 | Span (m) | (3 - 60) |
| 3 | Height of Lift (m) | (3 - 300) |
| 4 | Location | Indoor & Outdoor |
| 5 | Ambient Temperature (°C) | Upto 50 |
| 6 | Motions (m/min) | Main Hoist Speed - (1 - 10) Cross Travel Speed - (5 - 60) Long Travel Speed - (5 - 100) |
| 7 | Crane Control | Pendant Radio Remote Control |
| 8 | Operator Cabin | (Open/Closed/AC Cabin) |
| 9 | Power Source | Shrouded DSL, MS Angle DSL, Drag Chain |
ADVANTAGES
- Safe & Smooth operation with several inbuilt features.
- Robust design ensuring long service intervals
- Easy access to all major components for ease of servicing .
- Higher Space Utilisation in work area.
- Optimum use of floor space is possible due to shorter end clearance
- Easy access to all major components for ease of servicing.
- Optimum structure to ensure smaller headroom & Shed Design.
- Proven reliability.
